- Intuitively control, monitor, log and trend your energy
consumption, home theatre, multiroom audio, C-Bus
lighting,
keyless entry, IP cameras and door stations,
automatic
watering, motorised blinds
and roller shutters,
air-conditioning, heating and cooling

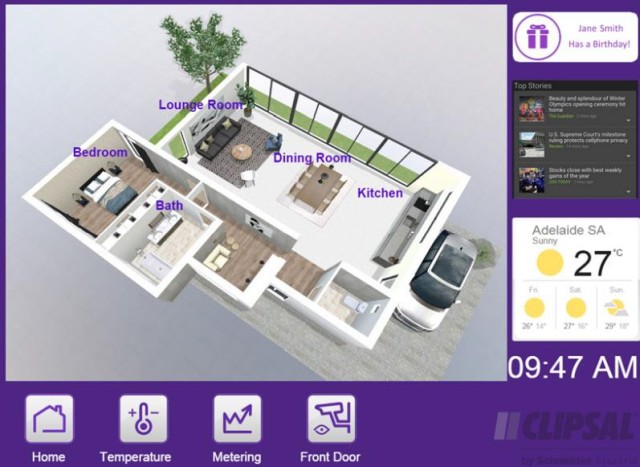

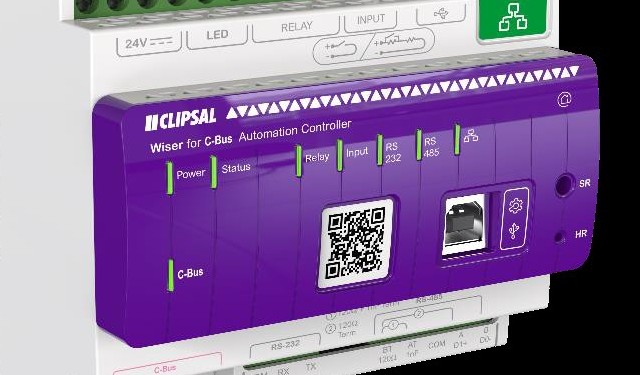

via your 5500SHAC Wiser for
C-Bus Home Automation Controller's user-friendly integrated visualisation from your PCs, touch screen panels, tablets or
smart phones - locally over your LAN WiFi, or remotely over the Internet.
- Easily manage and remotely control up to 2000 objects in your C-Bus home automation system
or other third party devices integrated using your 5500SHAC Wiser
for C-Bus Automation Controller over the following protocols: C-Bus, Modbus (RTU, TCP), RS-485, RS-232 (Serial), BACnet IP
(BTL certified), and TCP/IP.
- Also Enjoy the 5500SHAC Wiser's
extended home automation capabilities: including numerous large scenes
and schedules, free-form Lua script logic for as active and reactive occupancy
simulation and other customised functions for your home, home automation integration over IP of high-tech surveillance
cameras and door stations, Web Services (such as news feeds, weather forcasts, calendar events, etc) and additional
BMS functions via Ethernet media.
- Enjoy easier and safer installation and servicing of your 5500SHAC Wiser
in a wider range of locations in your automated home, thanks to its DIN mounted enclosure which makes direct connection with only
safe low voltage power cables and devices.
- Easy, inexpensive, and convenient remote connection over the Internet of your Clever Home Engineer's
laptop for commissioning or re-programming is supported by your 5500SHAC's side IP LAN connection. Easy direct local connection
is also supported by front-located USB socket. Dual internal C-Bus interfaces even enable your 5500SHAC to
remain connected and in control of your C-Bus system while your Clever Home automation Engineer is reconfiguring
your C-Bus home automation devices.
- Receive C-Bus status email reports from your 5500SHAC Wiser
for C-Bus Automation Controller when your C-Bus home automation system temporarily goes offline and returns
(usually due to C-Bus mains power loss), thanks to your 5500SHAC's use of its own external 24VDC power supply.
- Monitor and control local devices directly connected to your 5500SHAC Wiser
for C-Bus Automation Controller's low voltage output (1A @ 24VDC/48VAC), LED indicator output, and digital input (that
supports either a simple dry contact, or a dry contact with 2.2KOhm closed and 6.9KOhm Open resistors).
- The 5500SHAC Wiser
for C-Bus Automation Controller's provides an alternative set of features and benefits to the earlier C-Bus
Wiser 2 home automation controller - with both forecast to be available concurrently for the foreseeable future.
- An almost identical 5500NAC
C-Bus Network Automation Controller is also available should you require support for 50 User Profiles, 31 Modbus Devices,
and 500 BACnet Data Points - instead of the 8 User Profiles, 6 Modbus Devices,
and 50 BACnet Data Points supported by the 5500SHAC Wiser
for C-Bus Automation Controller. This is the only difference between the 5500NAC and the 5500SHAC devices.
- Create a C-Bus home automation touch screen by connecting your 5500SHAC Wiser
Home Automation Controller to a 5000ETP10W
Ethernet Touch Panel (5000ETP10W
datasheet) mounted neatly in a 5000ETP10WB
flush mount wall box. This combination may be considered as a neat upgrade replacement for the now discontinued
C-Bus colour touch screen.
- When programmed by your Clever Home automation Engineer
your 5500SHAC Wiser
for C-Bus Automation Controller can become the brains of your automated home, as well as your user-friendly window into it.
|
